ATE 24.0109-0124.1 Brake Disc for SEAT,VW
USD 50.23 USD

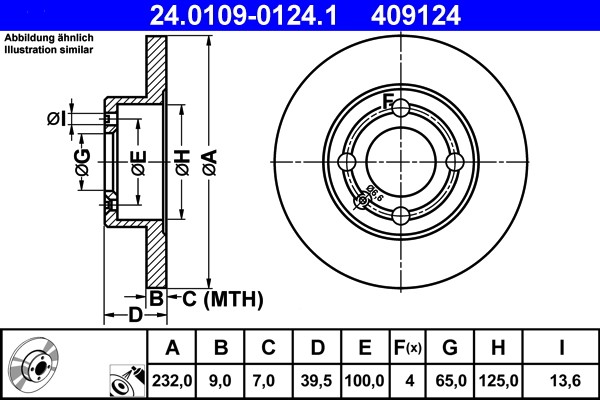

ATE 24.0109-0124.1 Brake Disc for SEAT, VWHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. Brake Disc Thickness [mm] 9,0. Brake Disc Type solid. SEAT 6N0 615 601 A. SEAT 6N0 615 601 B. Height [mm] 39,5.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0109-0124.1 |
| EAN | 4006633066358 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0109-0124.1, 409124 |
| Test Mark | E1 90R-02C0165/0925 |
| Height [mm] | 39,5 |
| Bore Diameter [mm] | 13,6 |
| Brake Disc Type | solid |
| Brake Disc Thickness [mm] | 9,0 |
| Minimum Thickness [mm] | 7,0 |
| Inner Diameter [mm] | 125,0 |
| Outer Diameter [mm] | 232,0 |
| Centering Diameter [mm] | 65,0 |
| Bolt Hole Circle Ø [mm] | 100,0 |
| Surface | Coated |
