ATE 24.0110-0190.1 Brake Disc for, Alfa Romeo, Chrysler, Fiat, Lancia

ATE 24.0110-0190.1 Brake Disc for, Alfa Romeo, Chrysler, Fiat, Lancia

USD 43.28 USD

SKU: 5R6vm186

MPN: 24.0110-0190.1

Condition: New

LANCIA LYBRA (839_) 1.9 JTD (839. AXI1A, 839. AXN1A, 839. LANCIA LYBRA (839_) 2.4 20V (839. LANCIA LYBRA (839_) 2.4 JTD (839. LANCIA LYBRA SW (839_) 1.6 (839. LANCIA LYBRA SW (839_) 1.9 JTD (839. ).

Tags: 08.3126.14 100 12,75 130 24.0110-0190.1 24.0110-0190.1, 410190 25,15 4006633086134 5,07 5,90 9,0 98,0 ATE Brake Disc coated E1 90R-02C0165/0833 Solid

Categories: Brakes & Brake Parts

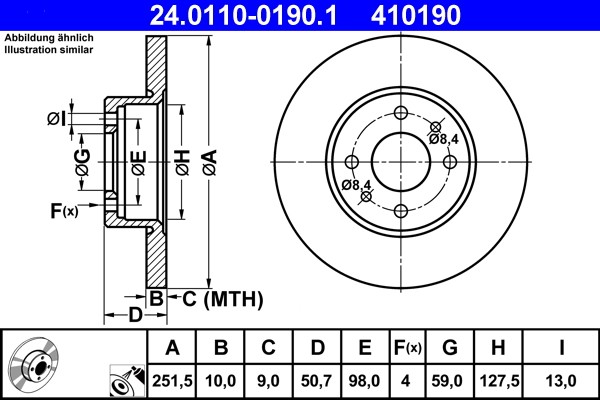

Specifications

Hersteller	ATE
Herstellernummer	24.0110-0190.1
EAN	4006633086134
Produkttyp	Brake Disc
Gebr-Nummer(s)	24.0110-0190.1, 410190
Test Mark	E1 90R-02C0165/0833
Height [mm]	50,7
Bore Diameter [mm]	13,0
Brake Disc Type	solid
Brake Disc Thickness [mm]	10,0
Minimum Thickness [mm]	9,0
Inner Diameter [mm]	127,5
Outer Diameter [mm]	251,5
Centering Diameter [mm]	59,0
Bolt Hole Circle Ø [mm]	98,0
Surface	Coated

LANCIA LYBRA (839_) 1.9 JTD (839. AXI1A, 839. AXN1A, 839. LANCIA LYBRA (839_) 2.4 20V (839. LANCIA LYBRA (839_) 2.4 JTD (839. LANCIA LYBRA SW (839_) 1.6 (839. LANCIA LYBRA SW (839_) 1.9 JTD (839. ).
