ATE 24.0110-0358.1 Brake Disc for MINI
USD 62.39 USD

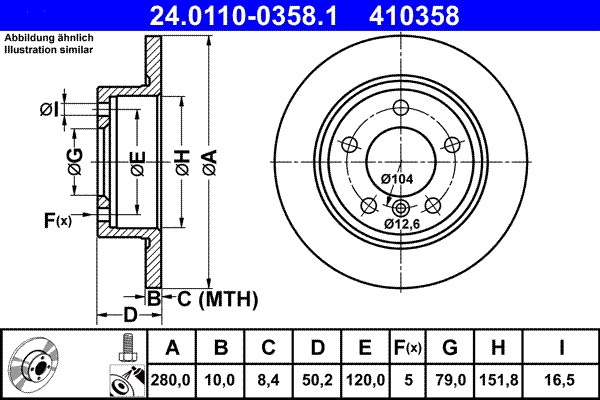

ATE 24.0110-0358.1 Brake Disc for MINIHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. Brake Disc Type solid. Brake Disc Thickness [mm] 10,0. Test Mark E1 90R-02C0165/0524. MINI 34 20 9 804 830. MINI 34 21 9 811 539.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0110-0358.1 |
| EAN | 4006633381390 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0110-0358.1, 410358 |
| Test Mark | E1 90R-02C0165/0524 |
| Height [mm] | 50,2 |
| Bore Diameter [mm] | 16,5 |
| Brake Disc Type | solid |
| Brake Disc Thickness [mm] | 10,0 |
| Minimum Thickness [mm] | 8,4 |
| Inner Diameter [mm] | 151,8 |
| Outer Diameter [mm] | 280,0 |
| Centering Diameter [mm] | 79,0 |
| Bolt Hole Circle Ø [mm] | 120,0 |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
