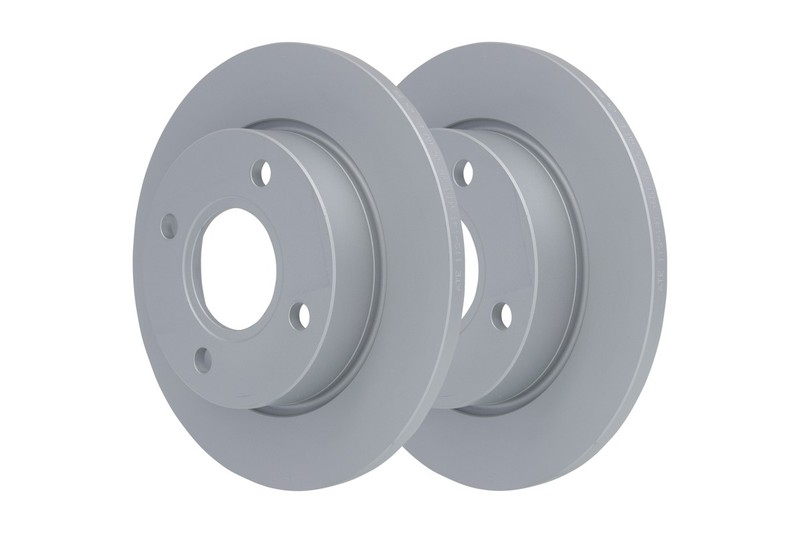

ATE 24.0112-0141.1 Brake Disc for Ford, Mazda
USD 37.85 USD
ATE 24.0112-0141.1 Brake Disc for FORD, MAZDAHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TEXTAR 92075300. TEXTAR 92075303. TEXTAR 98200 0753 0 1. MAZDA 1E03-33-251. MAZDA 1E03-33-251A. MAZDA 1E04-33-251.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0112-0141.1 |
| EAN | 4006633068147 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0112-0141.1, 412141 |
| Test Mark | E1 90R-02C0165/1151 |
| Height [mm] | 42,9 |
| Bore Diameter [mm] | 13,7 |
| Brake Disc Type | solid |
| Brake Disc Thickness [mm] | 12,0 |
| Minimum Thickness [mm] | 10,0 |
| Inner Diameter [mm] | 136,0 |
| Outer Diameter [mm] | 239,5 |
| Centering Diameter [mm] | 63,5 |
| Bolt Hole Circle Ø [mm] | 108,0 |
| Surface | Coated |
| Ursprungsland | Deutschland |
ATE 24.0112-0141.1 Brake Disc for FORD, MAZDAHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TEXTAR 92075300. TEXTAR 92075303. TEXTAR 98200 0753 0 1. MAZDA 1E03-33-251. MAZDA 1E03-33-251A. MAZDA 1E04-33-251.
