ATE 24.0112-0223.1 Brake Disc for Ford

USD 62.77 USD

SKU: rR6vm18b

MPN: 24.0112-0223.1

Condition: New

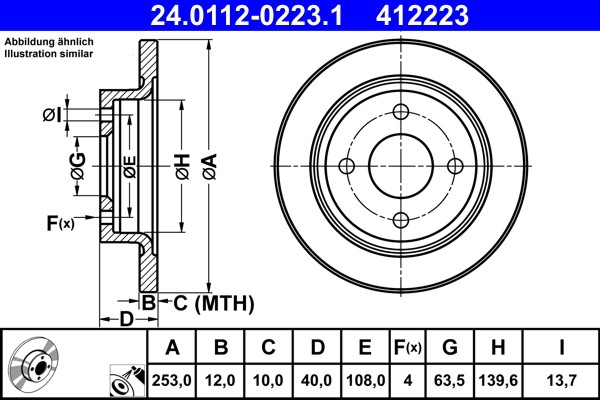

ATE 24.0112-0223.1 Brake Disc for FORDHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TEXTAR 92292803. Brake Disc Type solid. Brake Disc Thickness [mm] 12,0. FORD 2096336. FORD H1BC-2A315-AB. We will give you proper part number for needed spare part.

Tags: 100 108,0 120 13,7 139,6 24.0112-0223.1 24.0112-0223.1, 412223 253,0 315.0 mm 40,0 4006633478182 63,5 ATE Brake Disc coated Deutschland E1 90R-02C0165/1006 Solid

Categories: Brakes & Brake Parts

Specifications

Hersteller	ATE
Herstellernummer	24.0112-0223.1
EAN	4006633478182
Produkttyp	Brake Disc
Gebr-Nummer(s)	24.0112-0223.1, 412223
Test Mark	E1 90R-02C0165/1006
Height [mm]	40,0
Bore Diameter [mm]	13,7
Brake Disc Type	solid
Brake Disc Thickness [mm]	12,0
Minimum Thickness [mm]	10,0
Inner Diameter [mm]	139,6
Outer Diameter [mm]	253,0
Centering Diameter [mm]	63,5
Bolt Hole Circle Ø [mm]	108,0
Surface	Coated
Ursprungsland	Deutschland
