ATE 24.0116-0126.1 Brake Disc for Ford
USD 80.49 USD

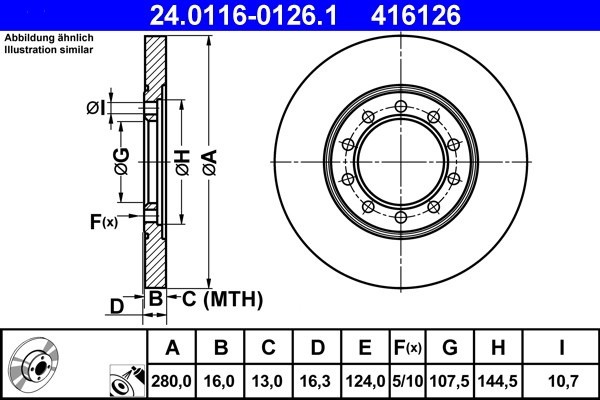

ATE 24.0116-0126.1 Brake Disc for FORDHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TEXTAR 92152000. TEXTAR 92152003. TEXTAR 98200 1520 0 1. Brake Disc Type solid. Brake Disc Thickness [mm] 16,0.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0116-0126.1 |
| EAN | 4006633314671 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0116-0126.1, 416126 |
| Test Mark | E1 90R-02C0165/0548 |
| Height [mm] | 16,3 |
| Bore Diameter [mm] | 10,7 |
| Brake Disc Type | solid |
| Brake Disc Thickness [mm] | 16,0 |
| Minimum Thickness [mm] | 13,0 |
| Inner Diameter [mm] | 144,5 |
| Outer Diameter [mm] | 280,0 |
| Centering Diameter [mm] | 107,5 |
| Bolt Hole Circle Ø [mm] | 124,0 |
| Surface | Coated |
ATE 24.0116-0126.1 Brake Disc for FORDHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TEXTAR 92152000. TEXTAR 92152003. TEXTAR 98200 1520 0 1. Brake Disc Type solid. Brake Disc Thickness [mm] 16,0.
