ATE 24.0120-0209.1 Brake Disc for Chevrolet, Opel, Vauxhall
USD 104.67 USD

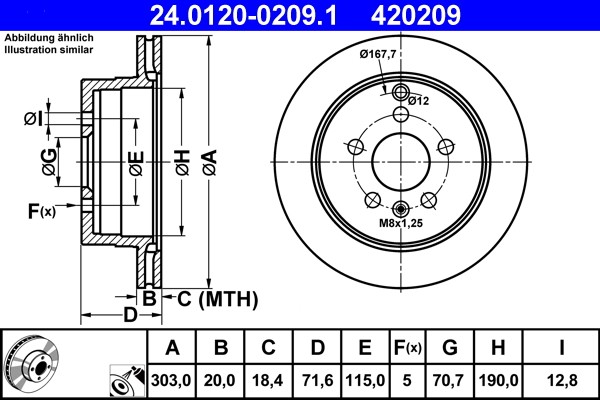

VAUXHALL 48 04 637. VAUXHALL 96625873. ATE 24.0120-0209.1 Brake Disc for CHEVROLET, OPEL, VAUXHALLHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. OPEL 48 04 637. OPEL 96625873. Machining Alloyed/High-carbon.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0120-0209.1 |
| EAN | 4006633311274 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0120-0209.1, 420209 |
| Test Mark | E1 90R-02C0296/1122 |
| Height [mm] | 71,6 |
| Bore Diameter [mm] | 12,8 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 20,0 |
| Minimum Thickness [mm] | 18,4 |
| Machining | Alloyed/High-carbon |
| Inner Diameter [mm] | 190,0 |
| Outer Diameter [mm] | 303,0 |
| Centering Diameter [mm] | 70,7 |
| Bolt Hole Circle Ø [mm] | 115,0 |
| Surface | Coated |
VAUXHALL 48 04 637. VAUXHALL 96625873. ATE 24.0120-0209.1 Brake Disc for CHEVROLET, OPEL, VAUXHALLHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. OPEL 48 04 637. OPEL 96625873. Machining Alloyed/High-carbon.
