ATE 24.0122-0185.1 Brake Disc for Toyota
USD 83.96 USD
ATE 24.0122-0185.1 Brake Disc for TOYOTAHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. Brake Disc Thickness [mm] 22,0. TOYOTA 43512-35210. TOYOTA 43512-60120. We will give you proper part number for needed spare part.

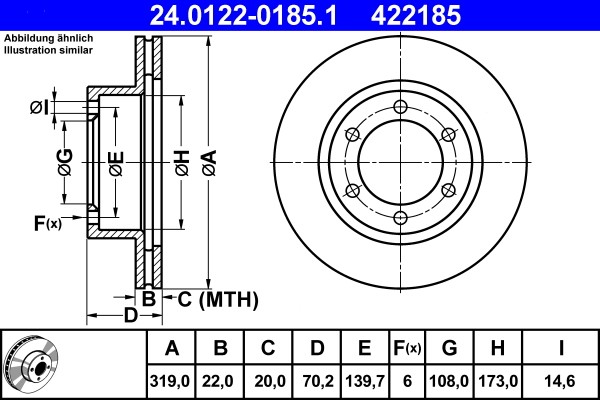

Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0122-0185.1 |
| EAN | 4006633029247 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0122-0185.1, 422185 |
| Test Mark | E1 90R-02C0115/0608 |
| Height [mm] | 70,2 |
| Bore Diameter [mm] | 14,6 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 22,0 |
| Minimum Thickness [mm] | 20,0 |
| Inner Diameter [mm] | 173,0 |
| Outer Diameter [mm] | 319,0 |
| Centering Diameter [mm] | 108,0 |
| Bolt Hole Circle Ø [mm] | 139,7 |
| Ursprungsland | Deutschland |
ATE 24.0122-0185.1 Brake Disc for TOYOTAHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. Brake Disc Thickness [mm] 22,0. TOYOTA 43512-35210. TOYOTA 43512-60120. We will give you proper part number for needed spare part.
