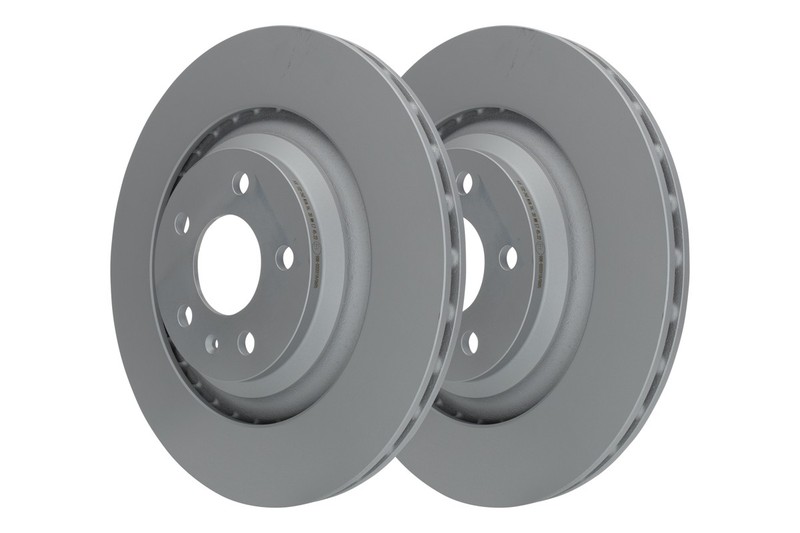

ATE 24.0122-0243.1 Brake Disc for Audi
USD 115.34 USD
ATE 24.0122-0243.1 Brake Disc for AUDIHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TRW DF4893S. Brake Disc Thickness [mm] 22,0. We will give you proper part number for needed spare part. Machining High-carbon.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0122-0243.1 |
| EAN | 4006633302951 |
| Produkttyp | Brake Disc |
| Vergleichsnummer | VAG 4F0 615 601 B |
| Gebr-Nummer(s) | 24.0122-0243.1, 422243 |
| Test Mark | E1 90R-02C0118/0605 |
| Height [mm] | 42,5 |
| Bore Diameter [mm] | 15,3 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 22,0 |
| Minimum Thickness [mm] | 20,0 |
| Machining | High-carbon |
| Inner Diameter [mm] | 146,0 |
| Outer Diameter [mm] | 330,0 |
| Centering Diameter [mm] | 68,0 |
| Bolt Hole Circle Ø [mm] | 112,0 |
| Surface | Coated |
ATE 24.0122-0243.1 Brake Disc for AUDIHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TRW DF4893S. Brake Disc Thickness [mm] 22,0. We will give you proper part number for needed spare part. Machining High-carbon.
