ATE 24.0125-0220.1 Brake Disc for VW
USD 97.77 USD

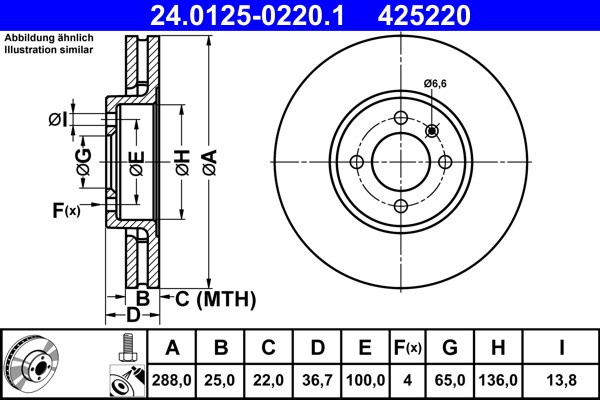

ATE 24.0125-0220.1 Brake Disc for VWHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. Brake Disc Thickness [mm] 25,0. Height [mm] 36,7. Minimum thickness [mm] 22,0. Bolt Hole Circle Ø [mm] 100,0. We will give you proper part number for needed spare part.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0125-0220.1 |
| EAN | 4006633479820 |
| Produkttyp | Brake Disc |
| Vergleichsnummer | VAG 1S0 615 301 K |
| Gebr-Nummer(s) | 24.0125-0220.1, 425220 |
| Test Mark | E1 90R-02C0118/1183 |
| Height [mm] | 36,7 |
| Bore Diameter [mm] | 13,8 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 25,0 |
| Minimum Thickness [mm] | 22,0 |
| Machining | High-carbon |
| Inner Diameter [mm] | 136,0 |
| Outer Diameter [mm] | 288,0 |
| Centering Diameter [mm] | 65,0 |
| Bolt Hole Circle Ø [mm] | 100,0 |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
