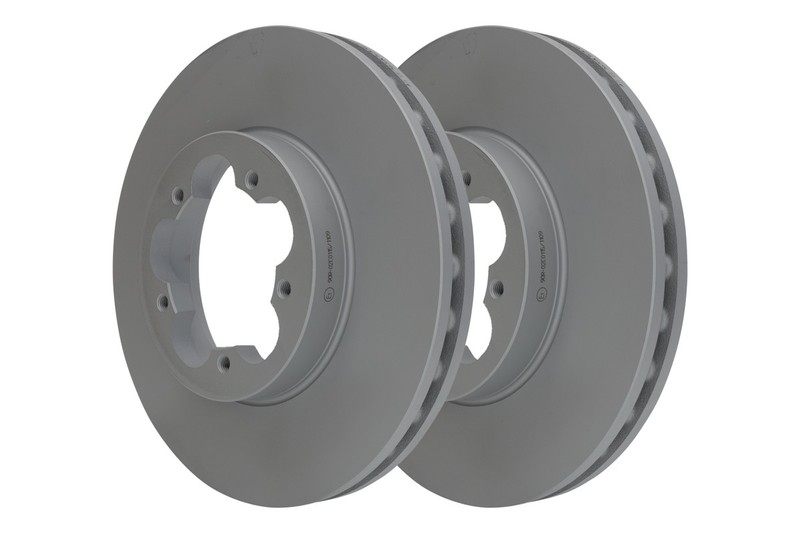

ATE 24.0128-0156.1 Brake Disc for Ford
USD 64.37 USD
ATE 24.0128-0156.1 Brake Disc for FORDHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TEXTAR 92151800. TEXTAR 92151803. TEXTAR 98200 1518 0 1. Brake Disc Thickness [mm] 28,0. FORD 1371394. FORD 1503290.

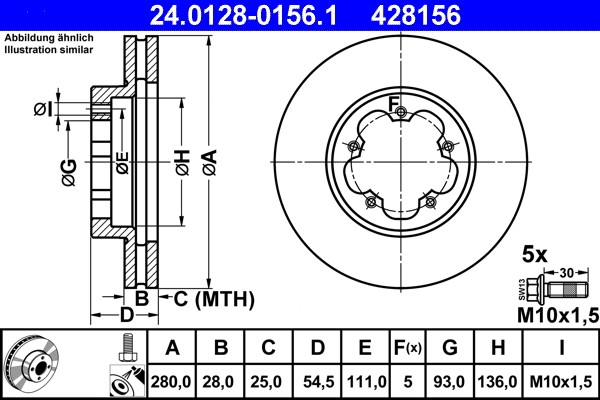

Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0128-0156.1 |
| EAN | 4006633311311 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0128-0156.1, 428156 |
| Test Mark | E1 90R-02C0115/1109 |
| Height [mm] | 54,5 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 28,0 |
| Thread Size | M10x1,5 |
| Minimum Thickness [mm] | 25,0 |
| Inner Diameter [mm] | 136,0 |
| Outer Diameter [mm] | 280,0 |
| Centering Diameter [mm] | 93,0 |
| Bolt Hole Circle Ø [mm] | 111,0 |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
ATE 24.0128-0156.1 Brake Disc for FORDHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. TEXTAR 92151800. TEXTAR 92151803. TEXTAR 98200 1518 0 1. Brake Disc Thickness [mm] 28,0. FORD 1371394. FORD 1503290.
