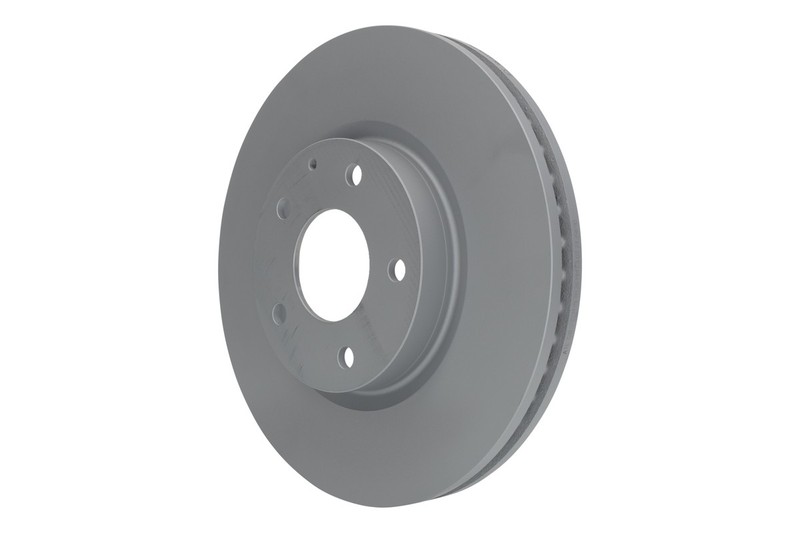

ATE 24.0128-0277.1 Brake Disc for Mazda
USD 109.66 USD

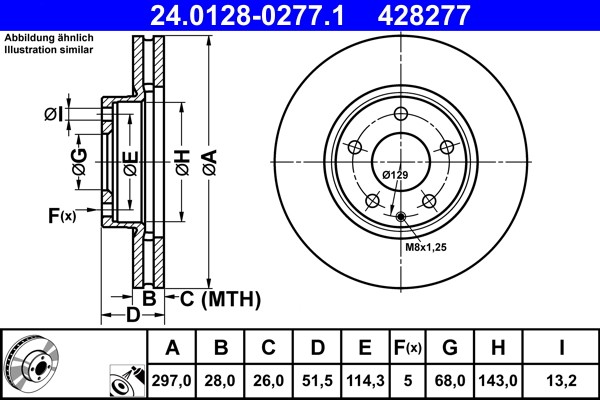

ATE 24.0128-0277.1 Brake Disc for MAZDAHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. MAZDA K011-33-251A. MAZDA K011-33-251B. Brake Disc Thickness [mm] 28,0. We will give you proper part number for needed spare part.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0128-0277.1 |
| EAN | 4006633411059 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0128-0277.1, 428277 |
| Test Mark | E1 90R-02C0115/0780 |
| Height [mm] | 51,5 |
| Bore Diameter [mm] | 13,2 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 28,0 |
| Minimum Thickness [mm] | 26,0 |
| Inner Diameter [mm] | 143,0 |
| Outer Diameter [mm] | 297,0 |
| Centering Diameter [mm] | 68,0 |
| Bolt Hole Circle Ø [mm] | 114,3 |
| Surface | Coated |
ATE 24.0128-0277.1 Brake Disc for MAZDAHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. MAZDA K011-33-251A. MAZDA K011-33-251B. Brake Disc Thickness [mm] 28,0. We will give you proper part number for needed spare part.
