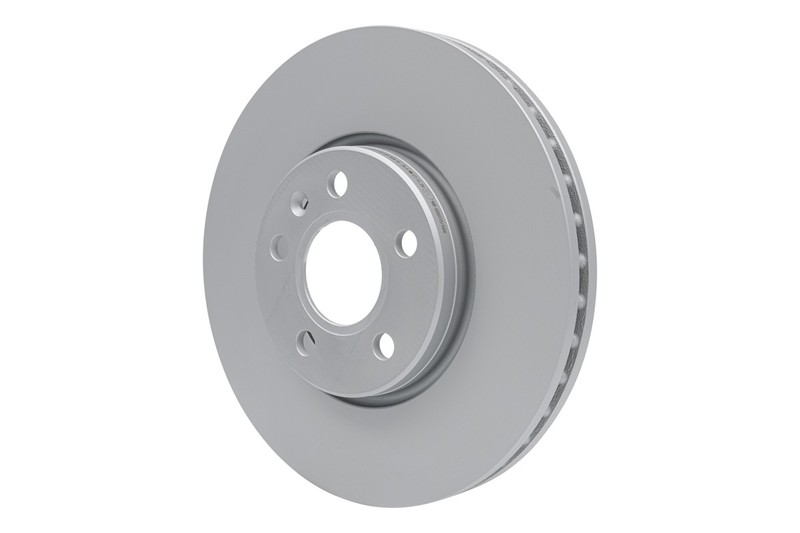

ATE 24.0128-0305.1 Brake Disc for Volvo
USD 92.55 USD

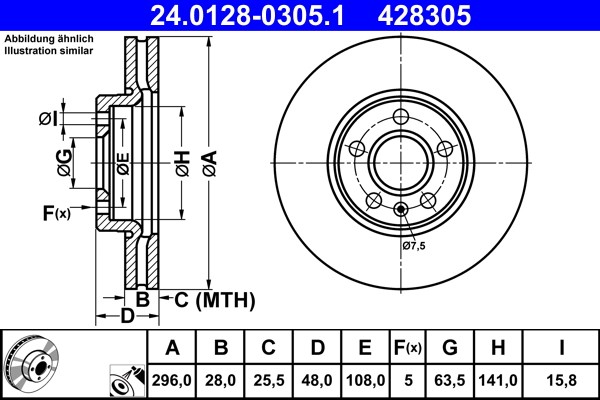

ATE 24.0128-0305.1 Brake Disc for VOLVOHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. VOLVO 31423722. Brake Disc Thickness [mm] 28,0.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0128-0305.1 |
| EAN | 4006633461313 |
| Produkttyp | Brake Disc |
| Vergleichsnummer | VOLVO 31423722 |
| Gebr-Nummer(s) | 24.0128-0305.1, 428305 |
| Test Mark | E1 90R-02C0115/1008 |
| Height [mm] | 48,0 |
| Bore Diameter [mm] | 15,8 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 28,0 |
| Minimum Thickness [mm] | 25,5 |
| Machining | High-carbon |
| Inner Diameter [mm] | 141,0 |
| Outer Diameter [mm] | 296,0 |
| Centering Diameter [mm] | 63,5 |
| Bolt Hole Circle Ø [mm] | 108,0 |
| Surface | Coated |
ATE 24.0128-0305.1 Brake Disc for VOLVOHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. VOLVO 31423722. Brake Disc Thickness [mm] 28,0.
