ATE 24.0132-0188.1 Brake Disc for Citroen, Fiat, Opel, Peugeot, Vauxhall
USD 123.23 USD

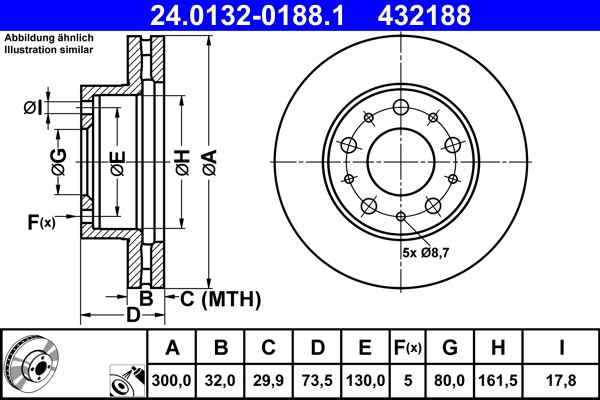

ATE 24.0132-0188.1 Brake Disc for CITROËN, FIAT, OPEL, PEUGEOT, VAUXHALLHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. FIAT 51957509. FIAT 51957510. Height [mm] 73,5.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0132-0188.1 |
| EAN | 4006633462815 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0132-0188.1, 432188 |
| Test Mark | E1 90R-02C0115/1074 |
| Height [mm] | 73,5 |
| Bore Diameter [mm] | 17,8 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 32,0 |
| Minimum Thickness [mm] | 29,9 |
| Inner Diameter [mm] | 161,5 |
| Outer Diameter [mm] | 300,0 |
| Centering Diameter [mm] | 80,0 |
| Bolt Hole Circle Ø [mm] | 130,0 |
| Surface | Coated |
