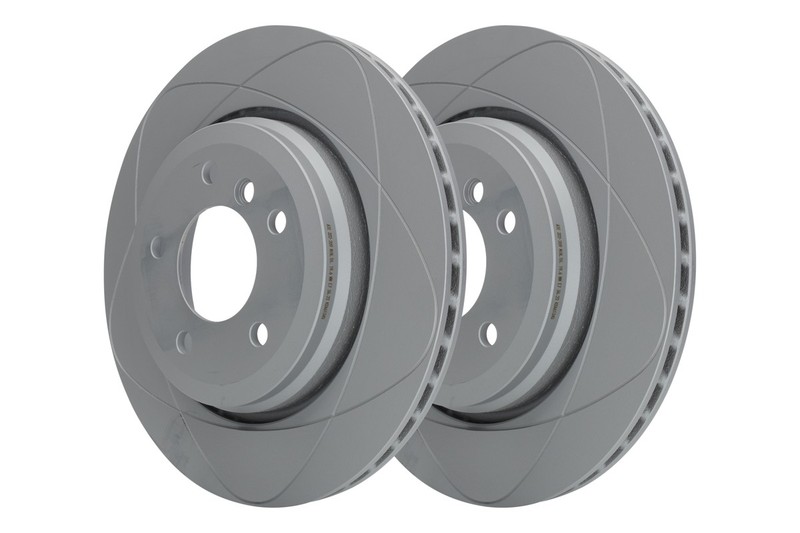

ATE 24.0322-0209.1 Brake Disc for BMW
USD 124.56 USD
ATE 24.0322-0209.1 Brake Disc for BMWHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. Brake Disc Thickness [mm] 22,0. BMW 34 20 1 166 073. BMW 34 21 6 855 157. BMW 34 21 6 864 052. We will give you proper part number for needed spare part.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0322-0209.1 |
| EAN | 4006633419185 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0322-0209.1, 522209 |
| Test Mark | E1 90R-02C2232/2503 |
| Height [mm] | 60,5 |
| Bore Diameter [mm] | 14,5 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 22,0 |
| Minimum Thickness [mm] | 20,4 |
| Machining | High-carbon |
| Inner Diameter [mm] | 185,0 |
| Outer Diameter [mm] | 320,0 |
| Centering Diameter [mm] | 75,0 |
| Bolt Hole Circle Ø [mm] | 120,0 |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
ATE 24.0322-0209.1 Brake Disc for BMWHIGHLIGHTED PART IN DIAGRAM ONLY. Manufacturer: ATE. Brake Disc Thickness [mm] 22,0. BMW 34 20 1 166 073. BMW 34 21 6 855 157. BMW 34 21 6 864 052. We will give you proper part number for needed spare part.
