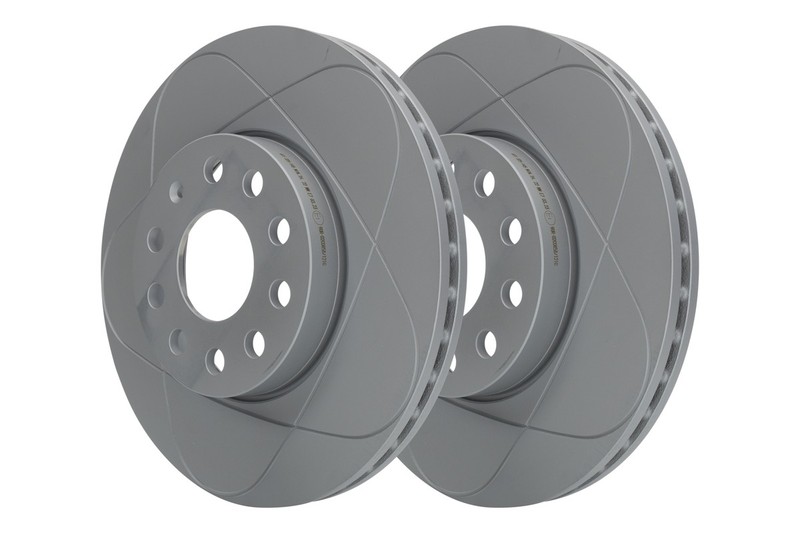

ATE 24.0325-0145.1 Brake Disc for Audi, Seat, Skoda, VW
USD 115.41 USD
SEAT 1K0 615 301 T. SEAT 5Q0 615 301 H. Height [mm] 49,9. SEAT JZW 615 301 J. Minimum thickness [mm] 22,0.
Specifications
| Hersteller | ATE |
| Herstellernummer | 24.0325-0145.1 |
| EAN | 4006633128186 |
| Produkttyp | Brake Disc |
| Gebr-Nummer(s) | 24.0325-0145.1, 525145 |
| Test Mark | E1 90R-02C0858/1210 |
| Height [mm] | 49,9 |
| Bore Diameter [mm] | 15,3 |
| Brake Disc Type | Vented |
| Brake Disc Thickness [mm] | 25,0 |
| Minimum Thickness [mm] | 22,0 |
| Machining | High-carbon |
| Inner Diameter [mm] | 144,0 |
| Outer Diameter [mm] | 288,0 |
| Centering Diameter [mm] | 65,0 |
| Bolt Hole Circle Ø [mm] | 112,0 |
| Surface | Coated |
| Supplementary Article/Info 2 | with bolts/screws |
SEAT 1K0 615 301 T. SEAT 5Q0 615 301 H. Height [mm] 49,9. SEAT JZW 615 301 J. Minimum thickness [mm] 22,0.
