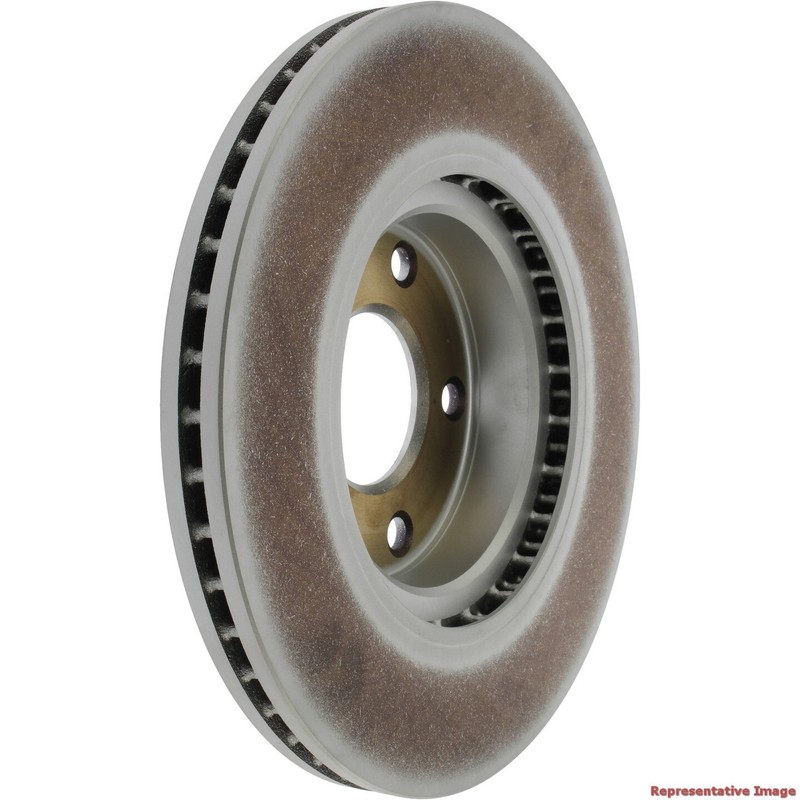

Centric Front Disc Brake Rotor for CX-3, 3, 3 Sport (320.45086F)
USD 69.41 USD
Part Category: Disc Brake Rotor. Type: Disc Brake Rotor. 2014-2016 Mazda 3 Sport 295mm Front Disc. 2014-2018 Mazda 3 295mm Front Disc. Disc Finish: Fully coated. Disc Mounting [cntrc]: Floating. Vehicle Position: Front.
Specifications
| Brand | Centric |
| Manufacturer Part Number | 320.45086F |
| Vehicle Position | Front |
| Placement On Vehicle | Front |
| Product Type | Factory Replacement |
| Type | Disc Brake Rotor |
| Discard Thickness | 23.000 |
| Nominal Thickness | 25.000 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 51.700 |
| Outside Diameter | 294.800 |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 68.100 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Stud/Lug Hole Diameter | 13.300 |
| Disc Mounting [cntrc] | Floating |
| Hat ID [cntrc] In | 5.575 |
| Hat ID [cntrc] Mm | 141.600 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 7.560 |
| Weight [cntrc] Lbs | 16.650 |
| UPC | 00889590731392 |
Part Category: Disc Brake Rotor. Type: Disc Brake Rotor. 2014-2016 Mazda 3 Sport 295mm Front Disc. 2014-2018 Mazda 3 295mm Front Disc. Disc Finish: Fully coated. Disc Mounting [cntrc]: Floating. Vehicle Position: Front.
