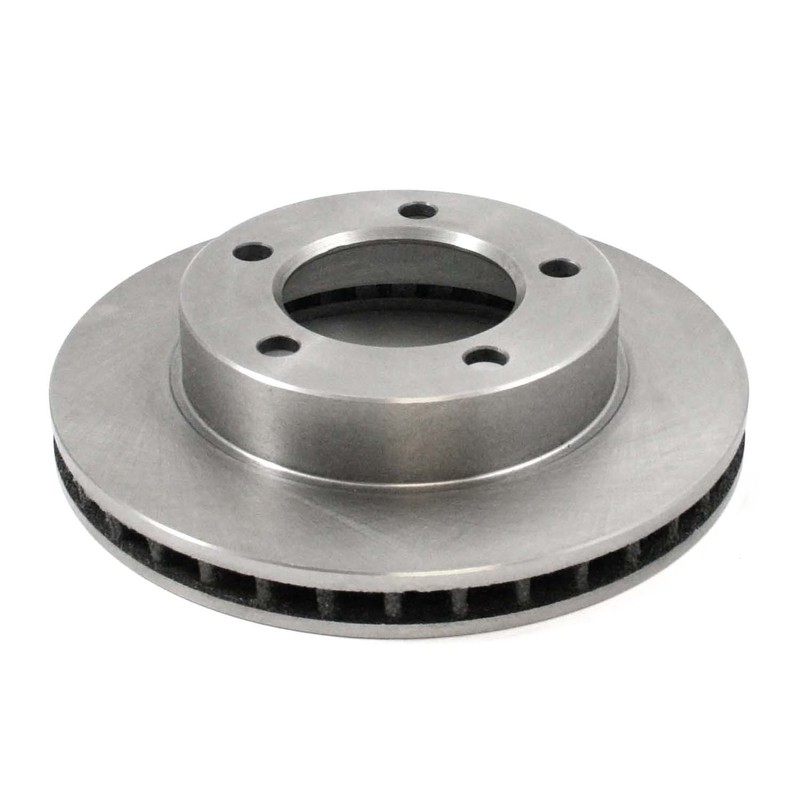

Disc Brake Rotor for 1976-1993 Ford Bronco, F-100, F-150 4WD

USD 64.80 USD

SKU: pn95CLa4

Brand: DuraGo

Condition: New

Ford Bronco 1976-1993 Rotor Only. Ford Bronco 1987-1988 Rotor Only; Automatic Locking Hubs. Ford F-100 1976 4WD Rotor Only. Ford F-150 1976-1993 4WD Rotor Only. Ford F-150 1987-1988 4WD Rotor Only; Automatic Locking Hubs.

Tags: 0.64 in. / 16.3 mm 139.7 MM, 5.5 IN 28.4 mm, 1.12 in 298 MM, 11.73 IN 30.2 MM, 1.19 IN 68.8 MM, 2.71 IN 98.5 MM, 3.88 IN Cast Iron Conventional DuraGo F-150, F-100, Bronco Full Cast Non Directional Vented

Categories: Brakes & Brake Parts

Specifications

Brand	DuraGo
Mounting Bolt Hole Diameter	0.64 IN, 16.3 MM
Mounting Bolt Hole Circle Diameter	139.7 MM, 5.5 IN
Center Hole Diameter	98.5 MM, 3.88 IN
Solid Or Vented Type Rotor	Vented
Outside Diameter	298 MM, 11.73 IN
Overall Height	68.8 MM, 2.71 IN
Construction	Full Cast
Nominal Thickness	30.2 MM, 1.19 IN
Discard Thickness	28.4 MM, 1.12 IN
Material	Cast Iron
Directional Or Non-Directional Brake Surface	Non-Directional
Conventional Or Drum-In-Hat Type Rotor	Conventional
