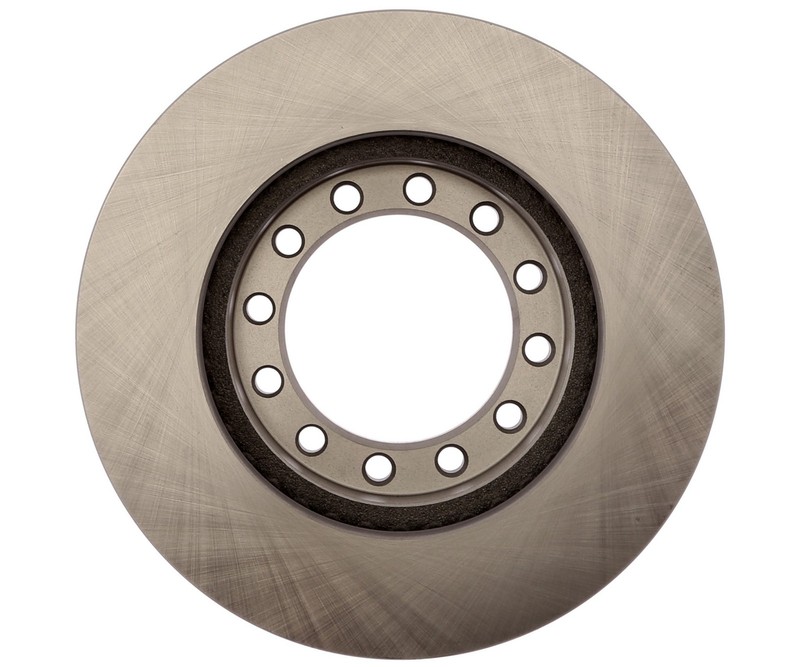

Disc Brake Rotor for 2016-2023 Chevy LCF 3500, 3500HD (12,000 lb GVW)
USD 77.21 USD
Chevrolet LCF 3500HD 2016-2017 R-Line w/ 13,000 lb. Chevrolet LCF 4500HD 2017-2020 R-Line w/ 14,500 lb. Chevrolet LCF 3500 2016-2018 R-Line w/ 12,000 lb. Chevrolet LCF 3500HD 2016-2017 Raybestos Brakes R-Line Disc Brake Rotor w/ 13,000 lb.
Specifications
| Brand | Raybestos Brakes |
| Harmonize Code | 8708.30.5030 |
| UNSPSC Code | 25171715 |
| Nominal Thickness | 40 MM, 1.575 IN |
| Mounting Bolt Hole Diameter | 12.35 MM, 0.487 IN |
| Mounting Bolt Hole Circle Diameter | 136 MM, 5.354 IN |
| Material | Cast Iron |
| Discard Thickness | 37 MM, 1.457 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Center Hole Diameter | 110 MM, 4.33 IN |
| Outside Diameter | 11.54 IN, 293.1 MM |
| Overall Height | 2.265 IN, 57.55 MM |
| Solid Or Vented Type Rotor | Vented |
Chevrolet LCF 3500HD 2016-2017 R-Line w/ 13,000 lb. Chevrolet LCF 4500HD 2017-2020 R-Line w/ 14,500 lb. Chevrolet LCF 3500 2016-2018 R-Line w/ 12,000 lb. Chevrolet LCF 3500HD 2016-2017 Raybestos Brakes R-Line Disc Brake Rotor w/ 13,000 lb.
