Front Disc Brake Rotor for P30, P3500, Ram 2500 Van, G30, G3500 (121.66030)
USD 121.36 USD
1998-1999 GMC P3500 SRW. 1997 GMC P3500 2 1/2" Wide Rear Shoe; JB7; JD7; SRW. 1997 GMC P3500 3 1/2" Wide Rear Shoe; JB8; SRW. 2000-2005 Workhorse P30 Rear Drum Brakes - SRW - 4 Wheel ABS. 1997-1999 Chevrolet P30 SRW.

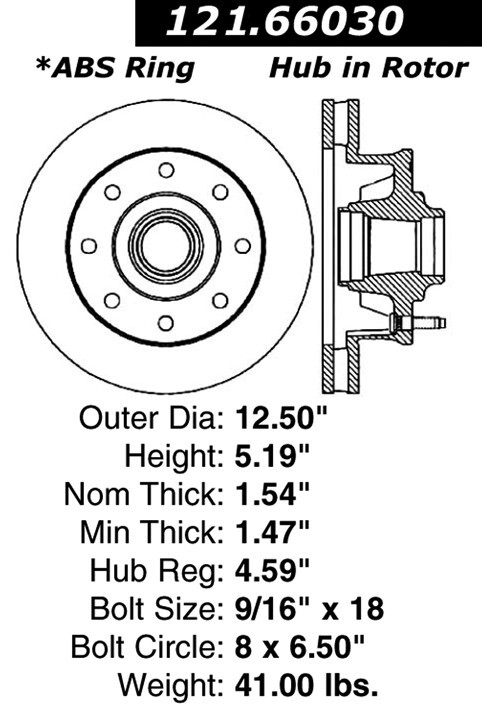

Specifications
| Brand | Centric |
| Manufacturer Part Number | 121.66030 |
| Vehicle Position | Front |
| Placement On Vehicle | Front |
| Product Type | Factory Replacement |
| Type | Disc Brake Rotor |
| Discard Thickness | 37.210 |
| Nominal Thickness | 38.990 |
| Stud Thread Diameter | 0.563 |
| Overall Height | 5.193 |
| Outside Diameter | 317.400 |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 |
| Center Hole Diameter | 4.587 |
| Mounting Bolt Hole Circle Diameter | 6.500 |
| Disc Mounting [cntrc] | Hub & rotor |
| Inner Bearing # [cntrc] | 410.91035 |
| Inner Seal # [cntrc] | 417.66008 |
| Outer Bearing # [cntrc] | 415.66000 |
| Outer Race # [cntrc] | 416.66000 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 18.640 |
| Weight [cntrc] Lbs | 41.000 |
| UPC | 00805890075639 |
1998-1999 GMC P3500 SRW. 1997 GMC P3500 2 1/2″ Wide Rear Shoe; JB7; JD7; SRW. 1997 GMC P3500 3 1/2″ Wide Rear Shoe; JB8; SRW. 2000-2005 Workhorse P30 Rear Drum Brakes – SRW – 4 Wheel ABS. 1997-1999 Chevrolet P30 SRW.
