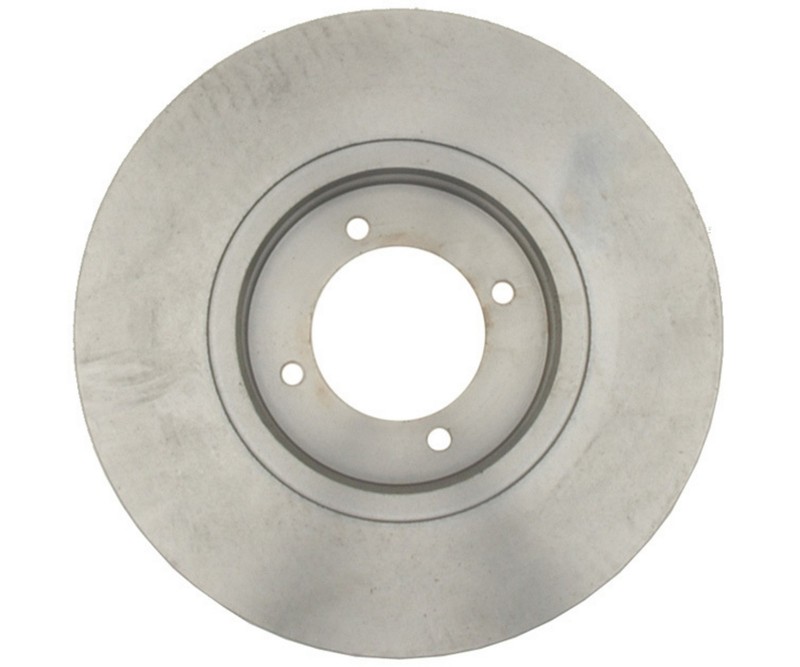

Mechanics Choice Front Disc Brake Rotor for 1969-1989 Peugeot 504, 505
USD 54.01 USD
Peugeot 505 1980-1989 Raybestos Brakes R-Line Disc Brake Rotor Solid Rotor. Peugeot 504 1969-1983 Raybestos Brakes R-Line Disc Brake Rotor. Peugeot 505 1980-1989 R-Line Solid Rotor. Peugeot 504 1969-1983 R-Line.
Specifications
| Brand | Raybestos Brakes |
| Item Weight | 11.47 LB |
| Harmonize Code | 8708.30.5030 |
| UNSPSC Code | 25171715 |
| Outside Diameter | 273 MM, 10.748 IN |
| Nominal Thickness | 12.9 MM, 0.508 IN |
| Mounting Bolt Hole Diameter | 98 MM, 3.858 IN |
| Mounting Bolt Hole Circle Diameter | 98 MM, 3.858 IN |
| Discard Thickness | 12 MM, 0.472 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Center Hole Diameter | 76 MM, 2.992 IN |
| Overall Height | 1.693 IN, 43 MM |
| Solid Or Vented Type Rotor | Solid |
Peugeot 505 1980-1989 Raybestos Brakes R-Line Disc Brake Rotor Solid Rotor. Peugeot 504 1969-1983 Raybestos Brakes R-Line Disc Brake Rotor. Peugeot 505 1980-1989 R-Line Solid Rotor. Peugeot 504 1969-1983 R-Line.
